D-PDC-DY-23 Dell PowerSwitch Data Center Deploy 2023 exam contains two parts: Part 1 contains 60 questions with a duration of 90 minutes, and the pass score is 63%; Part 2 contains 6 simulations with a duration of 30 minutes, and the pass score is 66%. You need to pass both parts to pass the D-PDC-DY-23 exam. We provide the latest Dell PowerSwitch Data Center Deploy 2023 D-PDC-DY-23 exam dumps, which can guarantee you pass the test easily. Free Dell PowerSwitch Data Center Deploy 2023 D-PDC-DY-23 exam dumps are available below.

Page 1 of 7

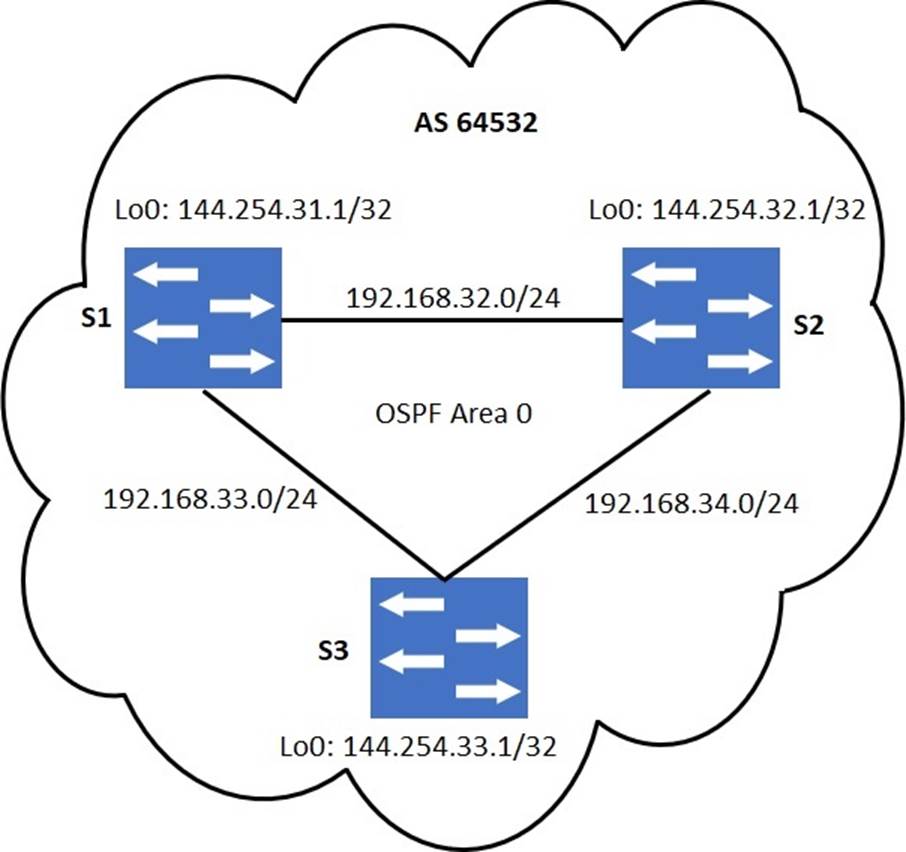

1. Refer to the exhibit.

Which configuration will allow S1 to ping S2’s Lo0 address?

S1(config-router)# ip route 144.254.32.1 192.168.32.2/32

S1(config-router)# ip route 192.168.32.2 144.254.32.1/32

S1(config)# ip route 144.254.32.1/32 192.168.32.2

S1(config)# ip route 192.168.32.2 144.254.32.1/32

2. When installing OS10 on a switch from a USB drive, what format is used for the file system?

HFS+

FAT32

NTFS

HFS

3. What do bridge protocol data units provide?

Special data frames to exchange STP information

Metadata transferred connecting two network bridges

Configuration data exchanged during a VLTi setup

Bridge information part of the LLDP protocol

4. A network administrator has to configure a virtual IP address using VRRP on interface VLAN 100 within OS10.

What are the correct steps to accomplish this?

OS10(config)# interface vlan 100 OS10(conf-if-vl-100)# ip address 10.0.100.2/24 OS10(conf-if-vl-100)# vrrp-group 256 OS10(conf-vlan100-vrid-256)# virtual-address 10.0.100.1

OS10(config)# interface vlan 100 OS10(conf-if-vl-100)# ip address 10.0.100.2/24 OS10(conf-if-vl-100)# standby-group 250 OS10(conf-vlan100-vrid-250)# virtual-address 10.0.100.1

OS10(config)# interface vlan 100 OS10(conf-if-vl-100)# ip address 10.0.100.1/24 OS10(conf-if-vl-100)# vrrp-group 250 OS10(conf-vlan100-vrid-250)# virtual-address 10.0.100.2

OS10(config)# interface vlan 100 OS10(conf-if-vl-100)# ip address 10.0.100.1/24 OS10(conf-if-vl-100)# standby-group 256 OS10(conf-vlan100-vrid-256)# standby-address 10.0.100.2

5. What are mandatory LLDPDU TLV's?

0123

0124

0456

1234

6. What is the function of UFD?

Detects the loss of downstream activity.

Load balances upstream activity.

Prevents the loss of upstream activity.

Detects the loss of upstream activity.

7. Using the MAC 8c-ec-4b-5b-61-9d, what is a valid EUI-64 link local address?

2001::a9:8eec:4bff:fc5b:619d

fe80::a9:8cec:4bff:fe5b:619d

ff80:a9:8eec:4bff:fe5b:619d

fe80::a9:8eec:4bff:fe5b:619d

8. In a PIM Sparse Mode (PIM-SM) based multicast topology, what function does the Rendezvous Point provide?

The node is used to provide IGMP snooping across a layer 3 boundary.

The root node of the source tree topology is used to provide routing between the source and receiver.

The root node of the shared tree topology is used to provide routing between the source and receiver.

The node is used to provide IGMP snooping on a layer 2 shared segment.

9. What does the command aaa authentication login default group radius local do?

First, a RADUIS server authenticates the users. If the credentials are incorrect, the local router database is used.

First, a RADUIS server authenticates the users. If the server fails to respond, a remote router database is used.

First, a RADIUS server authenticates the users. If the server fails to respond, the local router database is used.

First, the router local database authenticates the users. If it fails to respond, a RADUIS server authenticates the users.

10. What is the default PIM-SSM IP range?

224.0.0.0/4

224.0.0.0/24

232.0.0.0/8

232.0.0.0/4

Page 2 of 7

11. A network administrator wants to limit the amount of bandwidth that video traffic can consume.

Which type of policy map should be used?

Queuing

It is not possible to limit bandwidth using policy maps

Control plane

Application

12. How are ACLs processed?

LIFO

FIFO

Randomly

Sequentially

13. What is a benefit of multicast over unicast and broadcast communication

Latency is mitigated

Bandwidth equally distributed to all devices

Minimum network bandwidth use

Increase of the network load

14. What must be done before configuring any routing protocol in a VRF instance?

Assign an IP address to at least one of the interfaces assigned to the VRF instance

Create a routing group for each VRF instance

Assign each VRF instance to a routing group

Nothing, VRF routing protocols are assigned automatically

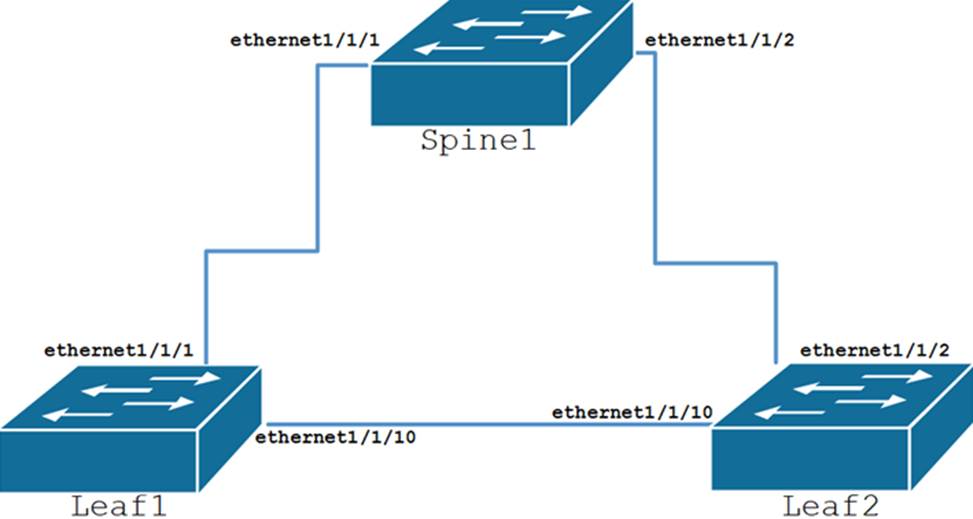

15. Refer to the exhibit.

Which three commands are used when deploying an automated Leaf and Spine topology using SFS? (Select 3)

Leaf1(conf)# smartfabric l3fabric enable role LEAF vlti ethernet 1/1/10

Spine1(conf)# smartfabric l3fabric enable role SPINE prefer

Spine1(conf)# smartfabric l3fabric enable role SPINE downstream ethernet 1/1/1-1/1/2

Leaf2(conf)# smartfabric l3fabric enable role LEAF vlti ethernet 1/1/10

Spine1(conf)# smartfabric l3fabric enable role SPINE

16. What is the maximum number of LLDP neighbors supported per system with OS10?

250

256

384

512

17. Which best describes traffic flow in a campus network environment?

North-East

South-West

East-West

North-South

18. Which command mode allows configuration of switches L2 and L3 interfaces?

EXEC Mode

Interface

Configuration

Global

19. A network administrator has configured Policy-based-Routing and applied it on interface ethernet 1/1/3.

What command can be used to verify that the policy is applied?

show ip policy brief

show ip policy

show interface ethernet 1/1/3 policy-map

show ip policy map

20. Which switch mode is used to manage files and display switch information?

Interface

Network

Exec

Configuration

Page 3 of 7

21. Two (2) Dell EMC Networking OS10 switches in a VLT configuration need to be upgraded.

How will the reload of these switches proceed to result in the default initial state?

Reload the primary VLT node. This process will automatically trigger the reload of the secondary node after it has completely recovered.

Reload the primary VLT node and wait for it to join as secondary. Wait until after delay restore timer has expired. Reload VLT secondary node and wait for it to join as secondary.

Reload the primary VLT node.This will automatically trigger the simultaneous reload of the secondary node.

Reload the primary VLT node and wait for it to join as primary. Wait until after delay restore timer has expired. Reload VLT secondary node and wait for it to join as secondary.

22. What is the default transmission interval of an LLDPDU in SmartFabric OS10?

23. Which multicast address is used by all OSPF routers?

239.0.0.4

239.0.0.6

224.0.0.5

224.0.0.6

24. When configuring a vrf instance for the management interface that has been in use, what step must be done first to configure it?

Configure a management route

Remove the default route

Remove all configured settings

Configure an IP Address

25. Refer to the exhibit.

Where is the rendezvous point for the group 239.255.255.250?

10.0.13.1

10.0.14.1

eth1/1/54

vlan300

26. What does an ABR do with a Type 7 LSA it receives from an attached NSSA?

It translates the Type 7 to a Type 5, and floods the LSA

Nothing, since Type 7 originated external routing information is rejected by an ABR

It floods the Type 7 to the rest of the OSPF domain

It summarizes the information in the Type 7 LSA in a new Type 3 LSA

27. Which IEEE standard defines the Multiple Spanning Tree Protocol?

802.1s

802.1w

802.1d

802.1ad

28. A network administrator wants to configure a timing protocol with these requirements:

- Hardware time stamping to achieve sub microsecond synchronization.

- Master IP address: 192.168.1.100.

- Use interface Ethernet 1/1/1 to enable timing protocol.

Which configuration supports the requirements?

OS10(config)# ptp clock boundary OS10(config)# ptp domain 1 OS10(config)# ptp system time enable OS10(config-if-eth1/1/1)# ptp enable OS10(config-if-eth1/1/1)# ptp role slave OS10(config-if-eth1/1/1)# ptp transport ipv4 unicast slave OS10(config-if-eth1/1/1-ptp-ipv4-slave)# master 192.168.1.100

OS10(config-if-eth1/1/1)# ntp authenticate OS10(config-if-eth1/1/1)# ntp trusted-key 345 OS10(config-if-eth1/1/1)# ntp authentication-key 345 md5 0 5A60910FED211F02 OS10(config-if-eth1/1/1)# ntp server 192.168.1.100 key 345 OS10(config-if-eth1/1/1)# ntp master 7

OS10(config)# ntp authenticate OS10(config)# ntp trusted-key 345 OS10(co345 md5 0 5A60910FED211F02 OS10(config)# ntp server 192.168.1.100 key 345 OS10(config-if-eth1/1/1)# nfig)# ntp authentication-key ntp master 7

OS10(config)# ptp clock boundary OS10(config)# ptp domain 1 OS10(config)# ptp system time enable OS10(config)# ptp enable OS10(config)# ptp role master OS10(config)# ptp transport ipv4 unicast slave OS10(config-if-eth1/1/1)# master 192.168.1.100

29. When using Policy-Based Routing, what is a valid action?

Set source IP address

Drop packet

Set destination TCP port number

Set 802.1Q VLAN ID

30. What type of network in a Data Center flattens the core and aggregation layers into a single tier?

Leaf

Leaf-spine

Spine

TRILL

Page 4 of 7

31. In a Layer 3 Leaf-Spine topology what can be used to move Layer 2 traffic between racks?

VXLAN

Trunks

Port channel

VLT

32. What is an advantage of UFD?

Reduces connectivity loss.

Detects the loss of downstream connectivity.

Reduces network complexity.

Prevents the loss of upstream connectivity.

33. Which Ethernet interface speeds do Dell Networking OS10 switches support?

10, 16, and 40Gb

1, 10, and 25Gb

1, 2, and 100Gb

4, 8, and 32Gb

34. Refer to the exhibit.

No static routing has been configured. For iBGP loopback-based peering, which statement is correct?

It is not necessary for the routing table on S1 to have an entry for the loopback network of S3.

S1 should have the Loopback network of S3 in its routing table for loopback-based peering.

For iBGP peering, physical interface addresses must be used.

A static route on S1 to 144.254.32.1/32 will eliminate the need for loopback-based peering with S3.

35. A network administrator must restrict packets that are destined to the CPU of an OS10 switch.

How do they accomplish this?

IP fragment ACLs

Control-plane ACLs

Management-plane ACLs

Static null routes

36. What are the correct commands that configure the DHCP lease from pool DC1 to never expire?

OS10(config)# ip dhcp server OS10(config-dhcp)# pool DC1 accounting OS10(config-dhcp-DC1)#no lease expire

OS10(config)# ip dhcp server OS10(config-dhcp)# pool DC1 accounting OS10(config-dhcp-DC1)# no expire

OS10(config)#dhcp server OS10(config-dhcp)# pool DC1 OS10(config-dhcp-DC1)# no lease expire

OS10(config)# ip dhcp server OS10(config-dhcp)# pool DC1 OS10(config-dhcp-DC1)#lease infinite

37. A network administrator is implementing VRRP on a switch and has configured VLAN 10 to use a matching VRRP group ID 10.

Which two commands indicate default VRRP settings? (Select 2)

OS10(config)# vrrp version 2

OS10(conf-vlan10-vrid-10)# preempt

OS10(conf-vlan10-vrid-10)# priority 10

OS10(conf-vlan10-vrid-10)# advertise-interval secs 10

38. What is the valid range of VLAN IDs for Dell EMC Networking OS10 switches?

1-4096

1-4093

0-4092

0-4095

39. ACLs have which two actions?

Modify or drop.

Forward or erase.

Redistribute or forward.

Permit or deny.

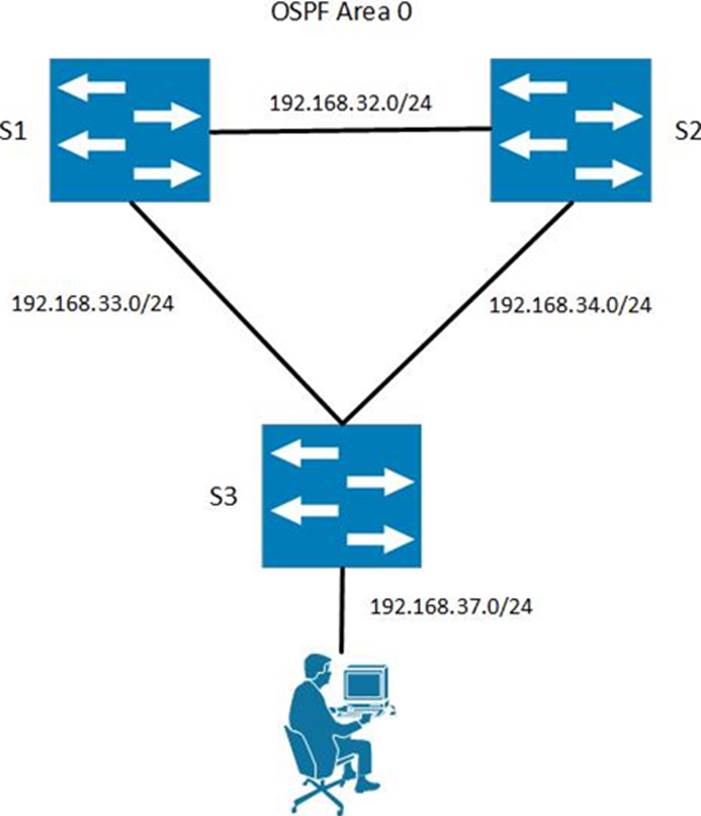

40. Refer to the exhibit:

From S1, a ping to the host address of 192.168.37.3 is not successful. The routing table on S1 shows three directly connected networks (including the Lo0 network of S1). Network 192.168.34.0/24 and the Lo0 networks of S2 and S3 are the only OSPF-learned networks in the routing table. The system on the 192.168.37.0/24 network can ping S3.

Which command offers a solution to the inability to ping the host address from S1?

S1(config-router-ospf-1)# ip route 192.168.37.0/24 interface null 0

S3(config-router-ospf-1)# update-source loopback 0

S3(config-router-ospf-1)# redistribute connected

S1(config-router-ospf-1)# network 192.168.37.0/24

Page 5 of 7

41. A network administrator is designing a Layer 2 topology and requires separate spanning- tree roots to avoid having a given port blocked for all instances.

Which spanning-tree protocols will meet this need?

STP & RSTP

RSTP-PV & MSTP

STP & RSTP-PV

RSTP & MSTP

42. What configuration must be common on iBGP neighbors to form an iBGP adjacency?

Local preference

Router-ID

AS number

Loopback interfaces

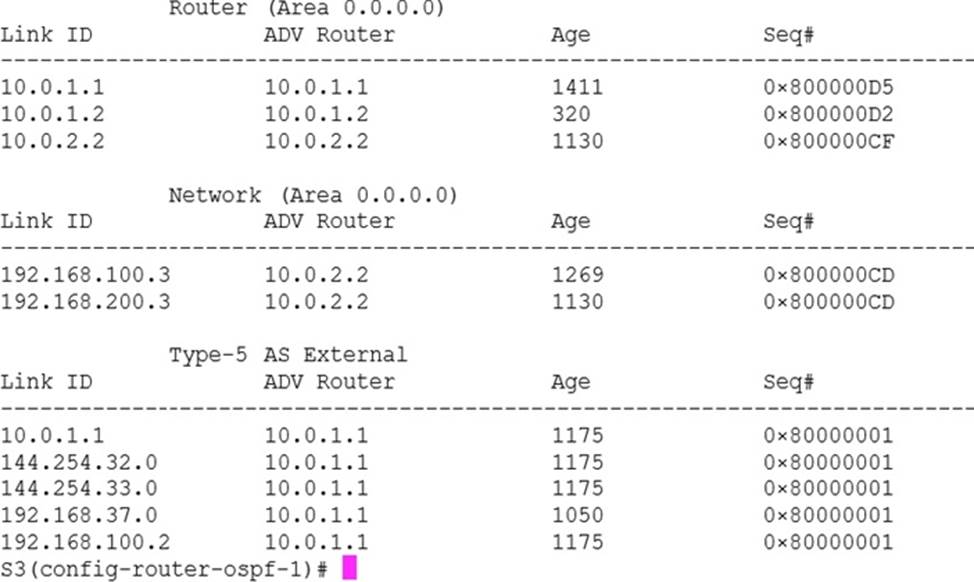

43. Refer to the exhibit.

The output shown is from which command?

S3(config-router-ospf-1)# show ip ospf database

S3(config-router-ospf-1)# show ip ospf topology

S3(config-router-ospf-1)# show ip ospf lsa

S3(config-router-ospf-1)# show ip ospf statistics

44. A router must be configured to allow multiple multicast servers for the same group to be presented only to ports where active listeners reside. Each listener may exclude non-preferred servers.

What is the minimum multicast configuration level required on the router?

IGMPv2 with snooping PIM-SSM

IGMPv3 with snooping PIM-SSM

IGMPv3 with snooping PIM-SM

IGMPv3 without snooping PIM-SSM

45. A router needs to be configured to allow multiple multicast servers for the same group to be presented only to ports where active listeners reside. Each listener may exclude non-preferred servers.

What is the minimum multicast configuration level required on the router?

IGMPv3 without snooping PIM-SSM

IGMPv2 with snooping PIM-SSM

IGMPv3 with snooping PIM-SSM

IGMPv3 with snooping PIM-SM

46. How many VRRP groups can be configured on a VRRP router?

128

255

256

512

47. ACL's have which two (2) actions?

Redistribute or forward

Forward or erase

Permit or deny

Modify or drop

48. Multicast flood restrict is a feature enabled by default on OS10 switches to ensure that no traffic drop occurs.

What is a recommended configuration step for its implementation?

Configure the interface between the PIM routers as a dynamic multicast router port

Enable IGMP snooping on the VLAN interfaces between two PIM routers with no IGMP receivers

Disable IGMP snooping on the VLAN between two PIM routers with no IGMP receivers on that VLAN

Configure the interface between the PIM routers and the rendezvous point as a static multicast router port

49. What is the range of values that can be used when using the vlt-port-channel command?

1-128

1-512

1-1024

1-256

50. A network administrator must configure separate rendezvous points for multicast groups 232.0.0.100 and 225.0.0.100.

Which commands are used for this configuration?

OS10(config)# ip multicast rp-address 1.1.1.1 group-address 232.0.0.100/32 OS10(config)# ip multicast rp-address 2.2.2.2 group-address 225.0.0.100/32

OS10(config)# ip pim rp-address 1.1.1.1 group-address 232.0.0.100/32 OS10(config)# ip pim rp-address 2.2.2.2 group-address 225.0.0.100/32

OS10(config)# ip pim rp-address 232.0.0.100/32 group-address 1.1.1.1 OS10(config)# ip pim rp-address 225.0.0.100/32 group-address 2.2.2.2

OS10(config)# ip pim rp-address 232.0.0.100/32 source-address 1.1.1.1 OS10(config)# ip pim rp-address 225.0.0.100/32 source-address 2.2.2.2

Page 6 of 7

51. A customer reports they can no longer access their services and a network administrator has been assigned to investigate. A UFD disabled error status appears on all ports.

What caused the issue?

Spanning tree Loop-guard was implemented on the uplink-state group.

One of the upstream interfaces is an uplink-state group went down.

There was no issue; this is normal behavior.

Both a port channel and its members were assigned to an uplink-state group.

52. Refer to the exhibit.

What will happen when a network administrator enters the shutdown command?

Maintains existing BGP sessions but no longer establishes new ones

Terminates any established BGP sessions for the specified neighbor

Stops any traffic from being sent on the physical interface used to reach neighbor 192.168.200.1

Terminates established BGP sessions for the specified ASN (64567)

53. Match the IGMP versions and features in the source column to the feature or version where they first appeared. There are more packet descriptions than IGMP versions.

IGMP Version 1 - a) Queries can be sent out either as general queries or group-specific queries IGMP Version 2 - b) IGMP Version 3 IGMP Version 2 - c) Routers send out a ‘query’ every 60 seconds Exclude Mode - e) Enhances by adding Source-Based-Filtering

IGMP Version 1 - a) Queries can be sent out either as general queries or group-specific queries IGMP Version 2 - b) IGMP Version 3 IGMP Version 2 - d) IGMP Version 2 Exclude Mode - e) Enhances by adding Source-Based-Filtering

IGMP Version 1 - c) Routers send out a ‘query’ every 60 seconds IGMP Version 2 - b) IGMP Version 3 IGMP Version 2 - d) IGMP Version 2 Exclude Mode - e) Enhances by adding Source-Based-Filtering

IGMP Version 1 - c) Routers send out a ‘query’ every 60 seconds IGMP Version 2 - b) IGMP Version 3 IGMP Version 2 - d) IGMP Version 2 Exclude Mode - a) Queries can be sent out either as general queries or group-specific queries

54. What is the purpose of the DHCP Relay Agent?

Forwards DHCP requests from a client to the server on another subnet

Forwards DHCP responses from one server to clients

Broadcasts DHCP requests from clients to all servers

Assigns network addresses and subnet masks to DHCP clients if the server fails to respond

55. What is an attribute of OS10 Enterprise Edition?

Includes full programmability

No license needed

Free download

Provides a GUI

56. A network administrator is troubleshooting a PBR implementation and needs to know how many packets have matched the route-map criteria.

How do they view this information in OS10?

OS10# show route-map

OS10# show interface statistics

OS10# show route-maproute-map-statistics

OS10# show route-mappbr-statistics

57. What is a benefit of adding a virtual router partition in OS10?

Allows VRRP to work in an active-active manner.

Allow production traffic to have multiple redundant gateways.

Allows for management interface to have an isolated routing table.

Allows multiple logical IP subnets on a single LAN segment.

58. When configuring VRRP in tandem with VLT, what is the default VRRP mode?

active-active

primary-standby

active-standby

master-backup

59. What is an advantage of running LLDP?

Automatic error detection and correction of the port

Reduces spanning-tree convergence

Provides detailed software version information

Simplifies the use of network management

60. Interface Ethernet 1/1/3 has been configured with an IP address, and the interface is UP.

How does the routing table present the associated network?

Static

Directly connected

Dynamic

Default

Page 7 of 7

61. You have been asked to examine a BGP configuration for a co-worker who is having difficulty establishing BGP peering. The address shown is that of the neighbor's Lo0 interface.

Given the configuration shown, what would be your recommendation?

S3(config-router-bgp-65042)# neighbor 192.168.32.1

S3(config-router-neighbor)# remote-as 65042

Modify the existing configuration to be: S3(config-router-bgp-65042)# neighbor 192.168.32.1/24 S3(config-router-neighbor)# peer-as 65042

Add the following to the existing configuration: S3(config-router-neighbor)# update- source loopback 0 S3(config-router-neighbor)# no shutdown

Issue the no shutdown command and verify that the BGP state is ESTABLISHED

Issue the no shutdown command and verify that the BGP state is ACTIVE

D-PDC-DY-23 Dell PowerSwitch Data Center Deploy 2023 Exam Dumps

D-PDC-DY-23 Dell PowerSwitch Data Center Deploy 2023 Exam Dumps

Share this post

Leave a Reply Cancel reply

Related Posts
