D-SNC-DY-00 Dell SONiC Deploy Exam Free Dumps

dumps2024-08-15T10:25:23+08:00

D-SNC-DY-00 exam is one for Dell SONiC Deploy certification. It focuses on the skills needed to deploy, configure, maintain, and troubleshoot Enterprise SONiC Distribution by Dell Technologies. The Dell SONiC Deploy D-SNC-DY-00 exam contains two parts: Part 1 duration is 90 minutes, and Part 2 duration is 30 minutes. Each candidate needs to pass both parts to pass this Dell SONiC Deploy D-SNC-DY-00 exam. We have cracked the latest Dell SONiC Deploy D-SNC-DY-00 exam dumps for you to study and test the related topics. Free Dell SONiC Deploy D-SNC-DY-00 exam online dumps are below.

Page 1 of 2

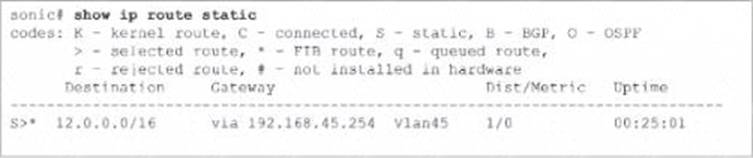

1. Refer to the exhibit.

What is the purpose of the static route?

Provide a route to the 12.0.0.0 network.

Provide a route to the 192.168.45.0 network.

Verify that the 12.0.0.0 network is active and reachable.

Verify that devices in VLAN 45 are reachable.

2. What is ECMP?

A Layer 3 routing feature to forward traffic using multiple available paths

A routing protocol database filter supporting a maximum of four paths

A round-robin path distribution mechanism

A routing protocol with multipath support

3. Refer to the exhibit.

Eth 1/1 of SONiC-1 and Eth1/56 of SONiC-2 should be a routed link connecting the two Enterprise SONiC switches. No traffic is passing between them.

What is the cause of the failure?

An incorrect IPv6 address type was used for interface Eth1/56 of SONiC-2.

A spanning-tree is blocking the routed link.

IPv6 is not enabled on interface Eth 1/1 of SONiC-1.

There is a cable that is unplugged between SONiC-1 and SONiC-2.

4. Refer to the exhibit.

What type of route is shown?

Type 3 host route from external VTEP

Type 2 host route from another VTEP

Type 3 host route from another VTEP

Type 5 host route from another VTEP

5. How many times must BGP be configured when running symmetric IRB with two VFRs?

6. What is the purpose of the write erase boot command option?

Delete the startup and enable zero touch provisioning.

Remove user-installed packages and tile changes.

Delete the startup configuration and the management interface configuration.

Delete the running configuration and all user accounts.

7. Refer to the exhibit.

Which three actions can a customer take to change interface Eth1/10 to operate in access mode for VLAN 40?

Configure the access mode for the switch port.

Delete VLAN 40.

Shut down the relevant interface.

Remove the current access VLAN configuration.

Enter it into the relevant interface.

8. How many ports are in each port-group on the S5200 series switches?

9. Which network devices route unencapsulated user traffic in a symmetric IRB overlay network?

Source VTEP and destination VTEP

Leaf router and spine router

Capability extended next hop router and leaf router

Autonomous system boundary router and source VTEP

10. Refer to the exhibit.

The router ID has not been manually configured.

What router ID is used for Switch 3?

192.168.100.2

192.168.100.0

10.0.2.1

10.0.1.1

Page 2 of 2

11. What interface must be selected when configuring the management port from within the MF-CLI environment?

mgmt 1/1/1

ma 0/1

Management 0

eth0

12. What does show interface breakout port slot/slot command display?

The Error/Debug status of the breakout of the port

The breakout modes available to that port

The In Progress/Complete status of the breakout of the port

The configuration of that port

13. What does the show vian command display?

All configured VLANs

Only VLANs in an active state

All 4094 VLANs

14. An administrator issues The ztp enable and show ztp status commands.

What two objectives are they trying to accomplish?

Administratively enable the ZTP process.

Remove the ZTP function from the switch.

Disable the ZTP process.

Check on the progress of the ZTP process.

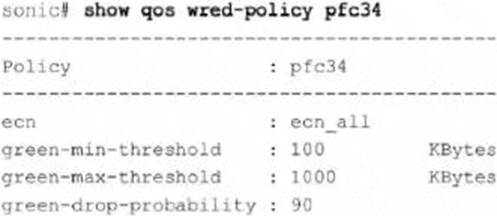

15. Refer to the exhibit.

What can be determined from this show command?

Traffic below 100 KB is marked as congested

ECN is enabled for all colors

ECN is enabled for all DSCP values

There is a 10% probability that traffic is marked as congested
