Dell PowerSwitch Campus Deploy 2023 D-PCM-DY-23 Exam Actual Dumps

1. Which technology is designed to protect against a default gateway failure and downtime in the Dell PowerSwitch N-Series switches?

2. A network administrator is having trouble successfully upgrading the firmware on a Dell EMC N-Series switch.

Which transfer protocol should be the last option if all others are not responding?

3. A network administrator is setting up a Class 5 powered device in their network.

Which Dell EMC N-Serves switch model(s) will support this device?

4. A Dell EMC N3048P with two power supplies is configured for Class-Based Power Management.

The switch has the following devices connected and fully operational:

10x 802.3af PDs negotiating as Class0 devices

10x 802.3af PDs negotiating as Class4 devices

10x 802.3at PDs negotiating as Class4 devices

How much power is reserved from the PSE budget by the devices referenced above?

5. To which destination MAC address are MLAG peer-keepalive packets sent?

6. Which command is used to display the current VLAN and switchport settings?

7. Which AAA method is only used for 802.1x and never returns an error?

8. What is the maximum number of dynamic MAC addresses that can be learned on a Dell EMC N-Series switchport that is configured for dynamic locking?

9. When configuring a Dell EMC N-Series switch for voice traffic, which settings are needed?

10. How many untagged VLANs are allowed on a switchport mode trunk interface?

11. A Dell EMC N-Series switch is configured with switchport mode access and ingress filtering.

What is the purpose of ingress filtering?

12. A network administrator has configured a 4-port port-channel between two Dell EMC Campus networking switches. The physical interfaces show as administratively up and operationally up on both switches. However, the port-channel shows as operationally up on Switch A and operationally down on Switch B.

What is a potential reason for the inconsistent port-channel state?

13. A customer is reporting that some critical PoE devices are shutting down randomly during daily activities. Devices on ports 1 and 3 should remain powered at all times.

Customer sends the show running-config output:

interface Gi1/0/1

spanning-tree portfast bpdufilter default

switchport access vlan 102

exit

!

interface Gi1/0/2

spanning-tree portfast bpdufilter default

switchport access vlan 102

exit

!

interface Gi1/0/3

spanning-tree portfast bpdufilter default

switchport access vlan 102

exit

!

interface Gi1/0/4

switchport mode trunk

switchport access vlan 205

switchport trunk native vlan 205

switchport trunk allowed vlan 102,106,205

exit

What recommendation should be given?

14. Which configuration tool will allow a network administrator to override routing protocol decisions and determine the forwarding of packets?

15. In a traditional campus network design using a three-tier hierarchical model, what are the key attributes of the Core layer in this model?

16. What describes VRRP advertisements?

17. Which command shows IPv6 adjacent devices on Dell OS6?

18. Which commands should a network administrator use to configure a RADIUS server on a Dell EMC N-Series switch?

19. An administrator is attempting to configure MLAG on two pairs of stacked switches; however, the MLAG cannot be created.

What is the most likely reason for this issue?

20. Which bit value is commonly used to indicate video traffic when implementing COS prioritization?

21. If VoIP traffic uses multiple QoS prioritization schemes, what refers to VoIP traffic?

22. Which protection is provided by the spanning tree root guard feature enabled on a switch port?

23. What describes the POE+ capabilities of the Dell EMC N1100P Series?

24. Which command will show the policy-based routing map applied on an interface?

25. Why would a network administrator select MLAG for two switches versus stacking?

26. If a group of routers are running VRRP with a virtual router ID of 155, which MAC address will be used to respond to the ARP requests for the virtual IP?

27. A group of four switches are configured to be part of a VRRP group with the following configurations:

- Switch1: IP 192.168.10.11, Priority 11

- Switch2: IP 192.168.10.12, Priority 12

- Switch3: IP 192.168.10.13, Priority 13

- Switch4: IP 192.168.10.14, Priority 14

The switches are initially disconnected from the network and come online in the following order: Switch3, Switch2, Switch4, Switch1.

If preempt is disabled, which switch is expected to be the Primary?

28. In a PoE environment, which IEEE protocol does a device use to request a power class?

29. Which default security level can be assigned to limit access of a specific user to a Dell EMC N-Series switch?

30. You are tasked with deploying a single Dell EMC N-Series switch with a 2-port port-channel to uplink to an existing upstream switch.

The following reflects the upstream switch configuration:

- N4032F#show running-config interface tengigabitethernet 1/0/5 channel-group 1 mode on

- N4032F#show running-config interface tengigabitethernet 1/0/6 channel-group 1 mode on

Which type of port-channel should be configured to successfully uplink?

31. How can a network administrator determine which Dell PowerSwitch N-Series switches can be stacked together?

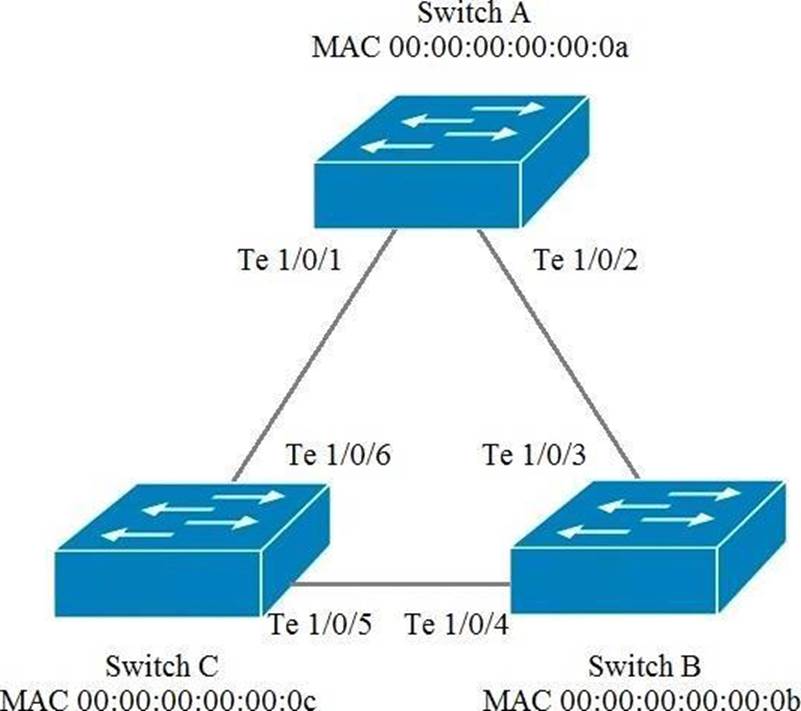

32. Based on the topology shown in the graphic, which ports are designated ports?

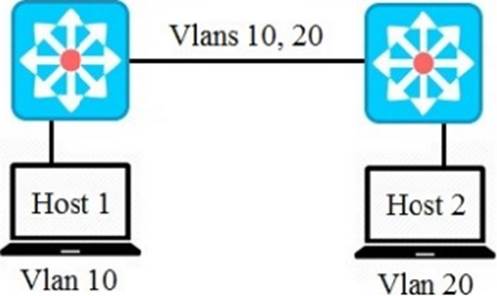

33. Refer to the Exhibit.





A network administrator needs to configure the switches to allow traffic to communicate from Host 1 to Host 2.

Which recommended switch port mode should the interconnecting switch ports be configured?

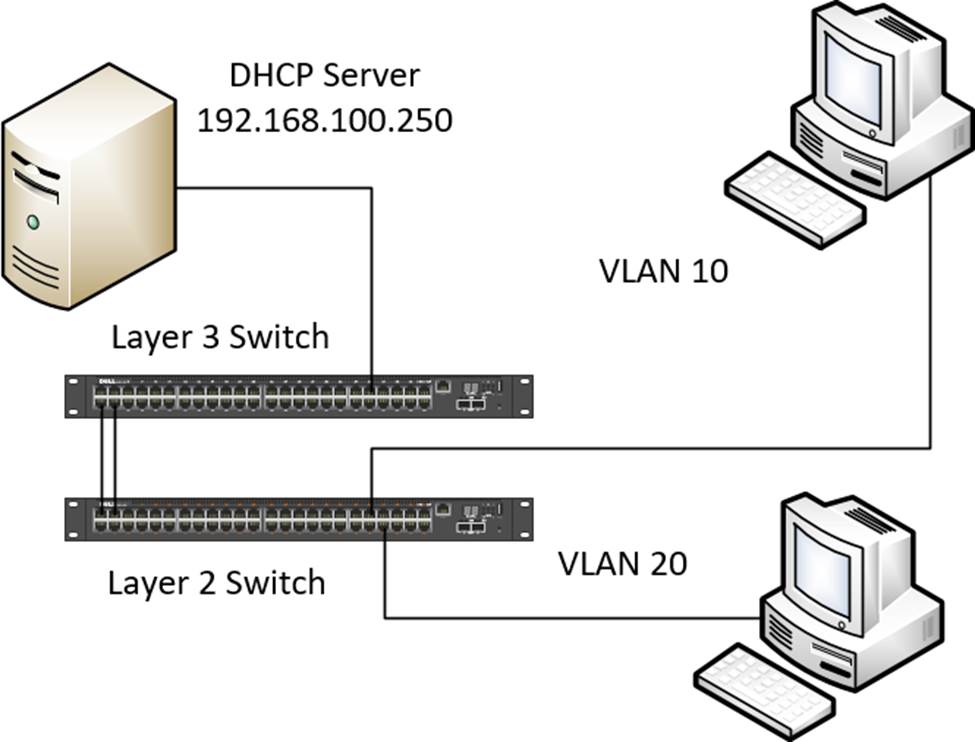

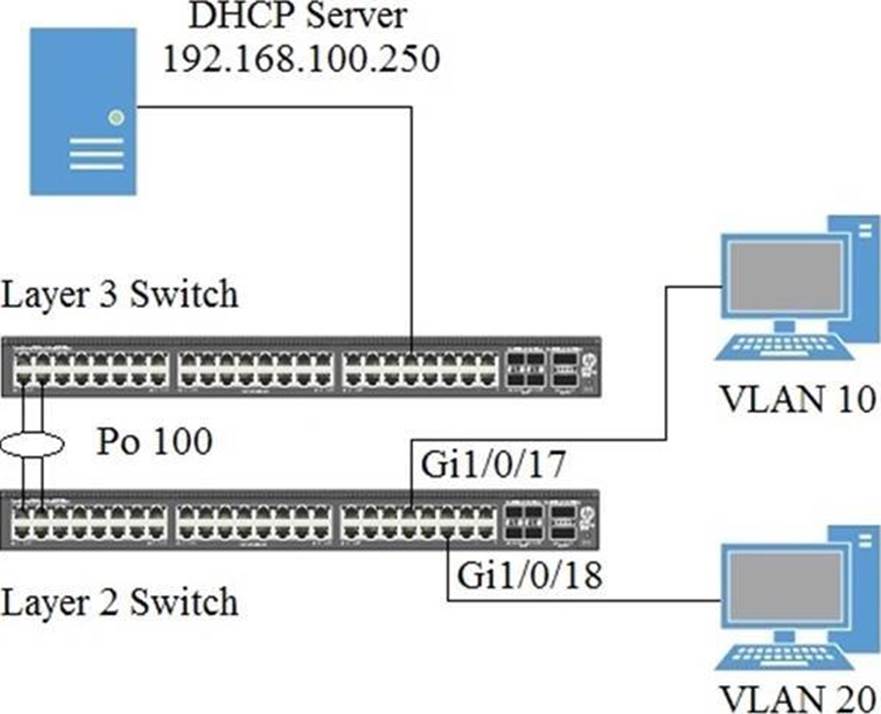

34. Based on the graphic, which command should be used on the Dell EMC N-Series Layer 2 switch to allow both client computers to receive a dynamic IP address?

35. Refer to the Exhibit.





Switch-1(config)# radius server host 10.1.1.111

Switch-1(config-radius)# key "secretkey"

Switch-1(config-radius)# exit

Switch-1(config)# aaa authentication login "LOCAL-AUTH" local

Switch-1(config)# aaa authentication login "REMOTE-AUTH" radius local

Switch-1(config)# aaa authentication enable "REMOTE-AUTH" radius enable

Switch-1(config)# aaa authentication login default tacacs local

Switch-1(config)# aaa authentication enable default tacacs enable

Switch-1(config)# line telnet Switch-1(config-telnet)# login authentication "REMOTE-AUTH"

Switch-1(config-telnet)# exit Switch-1(config)# line ssh

Switch-1(config-ssh)# login authentication default

Switch-1(config)# exit Switch-1(config)# line console

Switch-1(config-line)# login authentication "LOCAL-AUTH"

Switch-1(config-line)# exit

Which authentication method will be used if a user tries to login to the switch when accessing through SSH?

36. In a Dell EMC Campus networking environment, what are the valid port states for RSTP?

37. Which command enables Virtual Router Redundancy Protocol in Global Configuration Mode on a Dell OS6 switch?

38. Which OSPF packet type is sent to the neighbor when LSDB difference is detected?

39. Which three statements are true about MLAG? (Select 3)

40. A port has been configured with port-security dynamic with one allowable MAC address.

What happens if no frames from that MAC address are seen by the switch within the MAC table age-out time?

41. In a Dell EMC N-Series switch, what is the default LAG hashing mode?

42. Which two centralized authentication and authorization methods are available for Dell PowerSwitches? (Select 2)

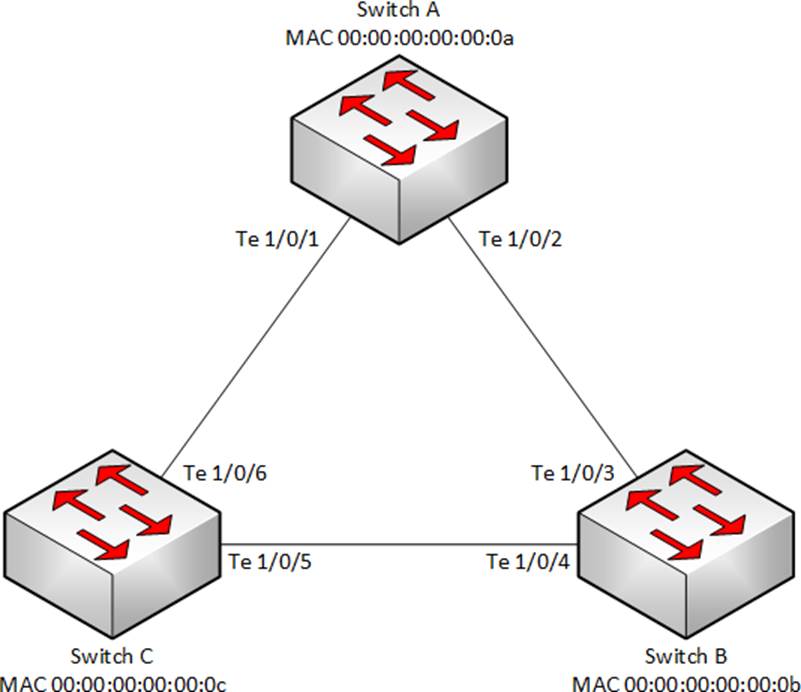

43. The exhibit represents a topology with all Dell EMC N4000 Series switches with RSTP enabled. In addition, the switches are using the default configuration on all ports and protocols.





Which port number will be blocked by spanning tree?

44. In a PoE environment, what information does the Network Policy TLV exchange between the PSE and PD?

45. How many ACLs are supported on a single interface in Dell EMC switches?

46. Which command enables routing in DNOS 6?

47. A network administrator wants to lock down network access using port security.

What allows an administrator to specify a list of host MAC addresses that are allowed on a port?

48. Which Dell OS6 command displays the IPv6 address of the default gateway and the default route associated with the gateway?

49. Which decimal value is used to indicate Assured Forwarding when implementing DSCP prioritization?

50. Which type of an attack is considered MAC poisoning?

51. What are key features of the Dell EMC N4064 or N4064F switches?
